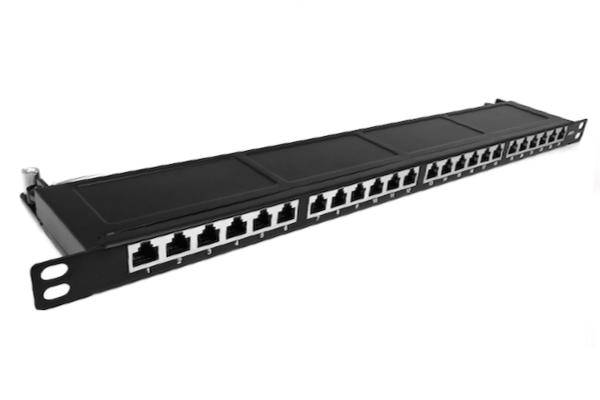

PP23, IDC Patch Panel, Shielded, Cat6A, Cat6, Cat5E, 0.5U

  • PP23 Series
  • Cat6A, Cat6, Cat5E
  • Shielded
  • 0.5U 24 Port

Technical Details

  • High Density 0.5U 24 Port
  • 180 degree / 90 degree option
  • 19 inch
  • Shielded
  • Cat6A Class Ea, Cat6 Class E
  • Dust cover option
  • Smart cable tie option
  • Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
  • Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
  • IDC wire size: 22 – 26 AWG solid and stranded conductor
  • Color: Black / Grey

      Order Information

      Part Number

      Part Number Category Height Port Remark
      PP23.6A Cat6A STP 0.5U 24
      PP23.6 Cat6 STP 0.5U 24
