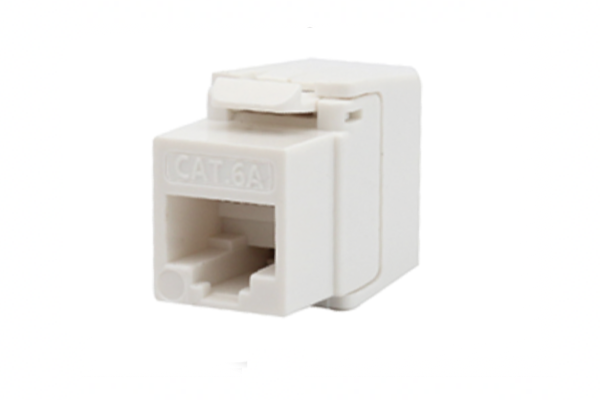

KJ21 UTP Keystone Jack, Tool Free, Cat6A Cat6 Cat5E

  • KJ21 series
  • Cat6A Cat6 Cat5E Option
  • Unshielded
  • Super Short
  • Tool free
  • Zero plastic package available

Technical Details

  • Category 6A 10G Base-T, 500 MHz
  • Category 6 250 MHz
  • Category 5E 100 MHz
  • ISO/IEC 11801 3rd edition, EN 50173-1, PoE/PoE+ (IEEE 802.3af, 3at)
  • RJ45 jack, 8P8C
  • Tool-free
  • Unshielded
  • Intelligent cable bundle for option
  • AWG-range: 26 … 22
  • Material: Zinc die-casting
  • Contact material: Phosphor bronze
  • Contact coating: Nickel, gold-plated 0.5 µ
  • Insertion force: Max. 30N
  • Operating temperature range: -20 °C to +70 °C
  • Mating cycles: ≥ 750
  • Mating cycles: ≥ 750

      Order Information

      Part Number

      Part Number Category Series Special Remark
      KJ21.U6A Cat6A UTP KJ21 Short
      KJ21.U6 Cat6 UTP KJ21 Short
      KJ21.U5E Cat5E UTP KJ21 Short
