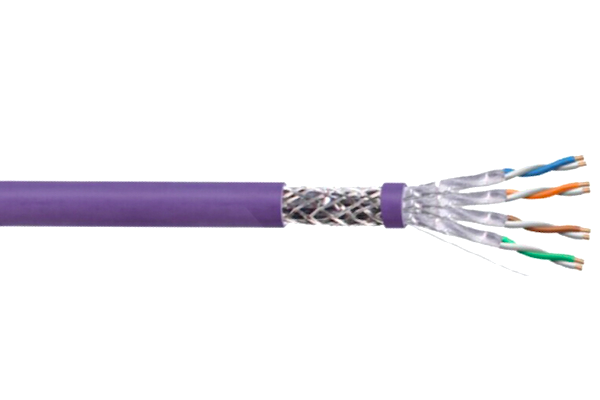

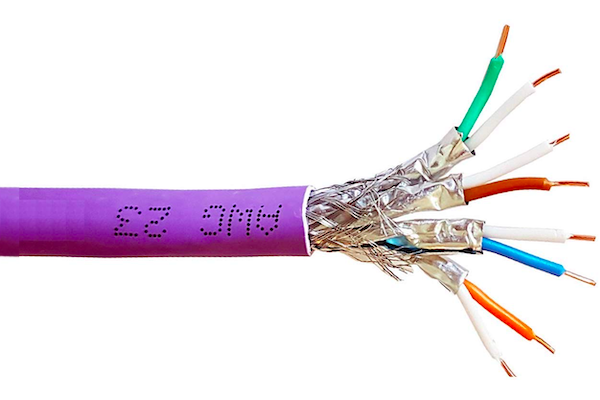

CAT6A S/FTP Lan Cable, 500 MHz, AWG 23/1 Cca & Dca & Eca LSZH, Purple

  • 10GBit Ethernet
  • 500 MHz transmission frequency
  • Permanent link certified
  • PoE Power over Ethernet support
  • CPR class Cca & Dca & Eca

Technical Details

  • Complies with the standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-10-1., IEC 60332-3-24, FRNC-C, LSZH-3
  • CPR Class Cca & Dca & Eca

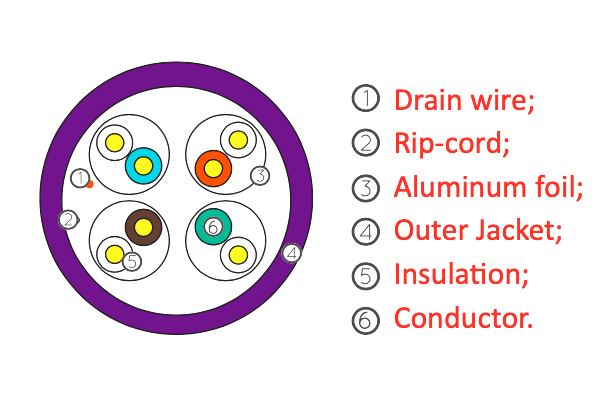

  • Conductor: Bare copper, solid AWG 23/1
  • Insulation: SFS-PE (foamed polyethylene sheath)
  • Individual pair shielding: Aluminum-covered polyester film, 100% coverage
  • Overall shielding: Tinned copper wire braid
  • Outer sheath: Cca/Dca/Eca LSZH
  • Tensile loading: 150N max.
  • Impedance: 100±15 Ohm @ 1 – 2000MHz
  • Capacitance: 99 pF/30m nominal @ 1 KHz
  • Capacitance unbalance (pair-ground): Is not specified
  • Voltage resistance: 72 Vdc max.
  • NVP: 79%
  • Color: Purple

    Order Information

    Part Number

    Part Number Category Sheath Package Remark
    CLC-6ASFTP-P305-C Cat6A SFTP LSZH 305m/drum CPR Cca
    CLC-6ASFTP-P500-C Cat6A SFTP LSZH 500m/drum CPR Cca
    CLC-6ASFTP-P305-D Cat6A SFTP LSZH 305m/drum CPR Dca
    CLC-6ASFTP-P500-D Cat6A SFTP LSZH 500m/drum CPR Dca
    CLC-6ASFTP-P305-E Cat6A SFTP LSZH 305m/drum CPR Eca
    CLC-6ASFTP-P500-E Cat6A SFTP LSZH 500m/drum CPR Eca
