Technical Details
- Complies with the standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-4-1., IEC 60332-3-24, FRNC-C, LSZH-3
- CPR Class Cca & Dca & Eca

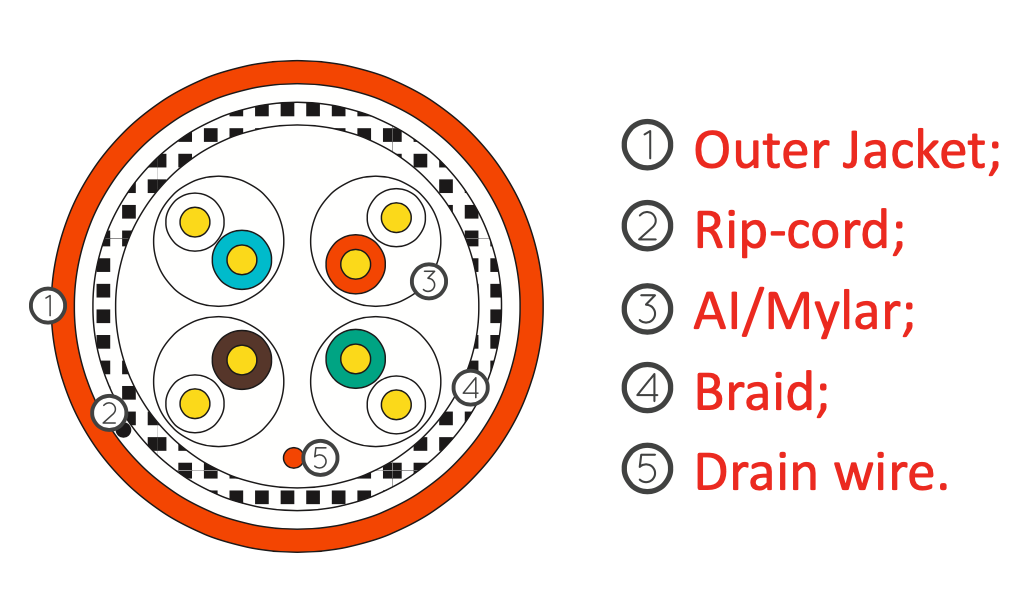

- Conductor: Bare copper, solid AWG 23/1
- Insulation: SFS-PE (foamed polyethylene sheath)
- Individual pair shielding: Aluminum-covered polyester film, 100% coverage
- Overall shielding: Tinned copper wire braid
- Outer sheath: Cca/Dca/Eca LSZH
- Tensile loading: 150N max.
- Impedance: 100±15 Ohm @ 1 – 2000MHz
- Capacitance: 99 pF/30m nominal @ 1 KHz
- Capacitance unbalance (pair-ground): Is not specified
- Voltage resistance: 72 Vdc max.
- NVP: 79%
- Color: Orange
