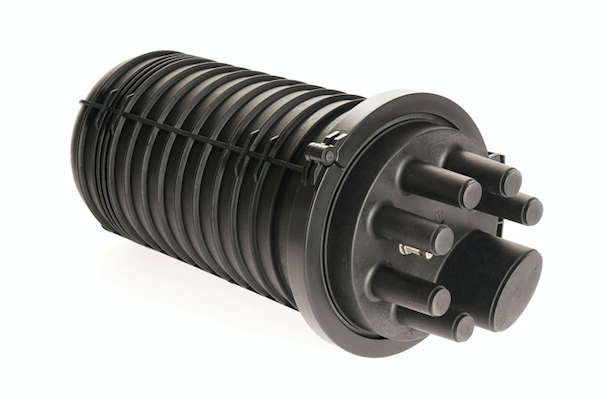

Fiber Dome Closure 108 core

108A Series

Technical Details

  • Protection Grade: IP68
  • Capacity: 12F~108F. Could be installed with 9 trays, with max capacity 12F for each one or 18 trays,with mex capacity 6F for each one.

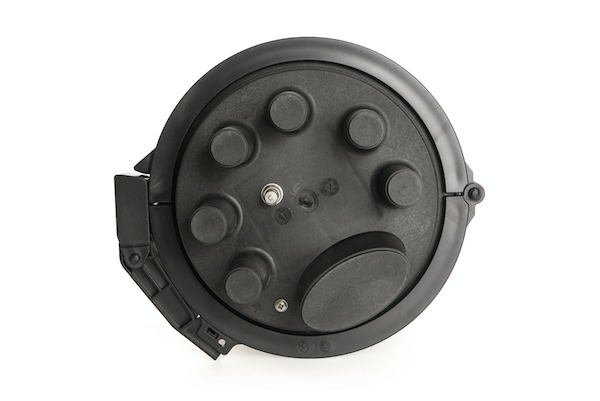

  • Ports: 6 branch ports for Ф8~18mm cable.1 port for Ф10~18mm uncut cable.
  • Sealing of housing : mechanical seal for housing,
  • Sealing of port: heat-shrink seal for ports
  • Installation: wall mounting, aerial, direct burial. etc.
  • Performance: meet all the industry standard performance tests from YD/T 814.1-2013 Closure for Optical Fiber Cables (ICS 33.180.99)

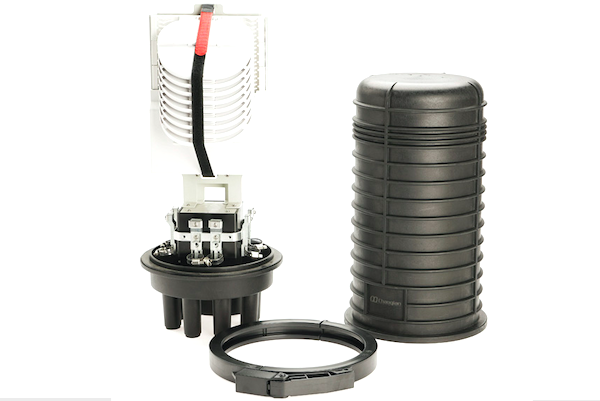

  • Satisfactory space for the placement of fiber joints and fiber storage, preventing the joints from being influenced by the external environment
  • Dimension: 480×Ф260 MM
  • Inner box : 480×275×245 MM
  • Outer Carton: 570×500×540 MM, 4pcs per outer carton

      Order Information

      Part Number

      Part Number Capacity QTY Cable Tray QTY Cable Entry Remark
      FDC-108A-7P12T-S 108 9*12F / 18*6F 6+1
      S: Mechanical Seal Housing And Hear Shrink Seal Port
      Dimension: 480×Ф260 MM
      Inner Box: 480×275×245mm MM
      Outer Carton : 570×500×540 MM , 4pcs per carton
