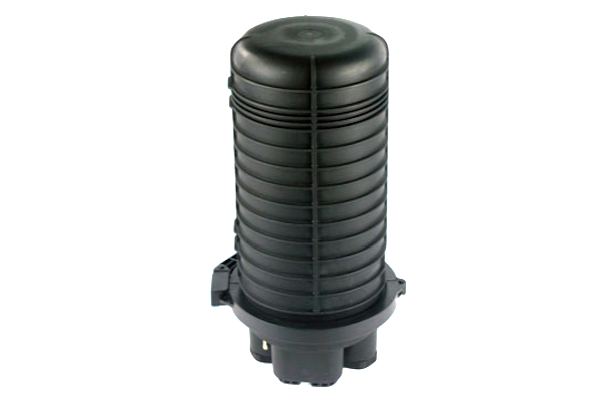

Fiber Dome Closure 120 core

120A Series

Technical Details

  • Protection Grade: IP68
  • Capacity: 24 -48F. Could be installed with 4 trays. l 2F/per tray in max.
  • 1:16 splitter is applicable and it also can be installed with 18 pcs SC adaptors.

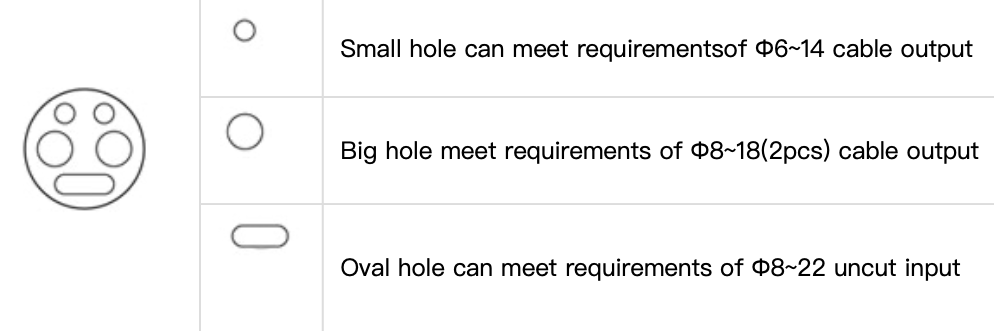

  • Ports: Small hole can meet requirementsof Ф6~14 cable output ; Big hole meet requirements of Ф8~18(2pcs) cable output;Oval hole can meet requirements of Ф8~22 uncut input
  • 1:32 splitter is applicable and it also can be installed with 34 SC adaptors.
  • Material: Modified polymer plastic
  • Sealing of housing : mechanical seal for housing,
  • Sealing of port: mechanical seal for ports
  • Installation: wall mounting, aerial, direct burial. etc.
  • Performance: meet all the industry standard performance tests from YD/T 814.1-2013 Closure for Optical Fiber Cables (ICS 33.180.99)

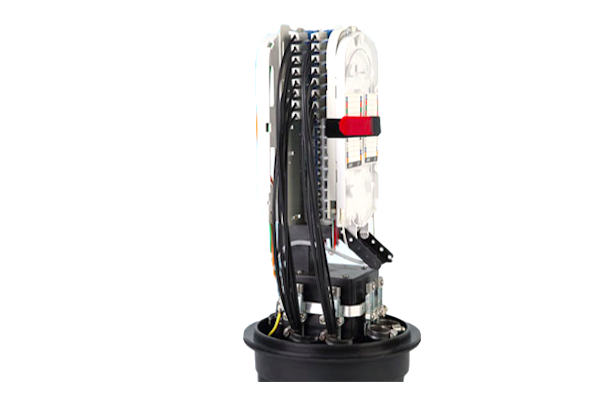

  • Satisfactory space for the placement of fiber joints and fiber storage, preventing the joints from being influenced by the external environment
  • Dimension: 478×ф260MM
  • Outer Carton: 570×500×540 MM, 4pcs per outer carton

      Order Information

      Part Number

      Part Number Capacity QTY Cable Tray QTY Cable Entry Remark
      FDC-120A-5P5T-M 120 5*24F 4+1
      FDC-120A-5P4T-M 96 4*24F 4+1
      FDC-120A-5P3T-M 72 3*24F 4+1
      FDC-120A-5P2T-M 48 2*24F 4+1
      FDC-120A-5P1T-M 24 1*24F 4+1
      M: Mechanical Seal Housing And Mechanical Seal Port
      Dimension: 478×ф260 MM
      Outer Carton : 570×500×540MM , 4pcs per carton
