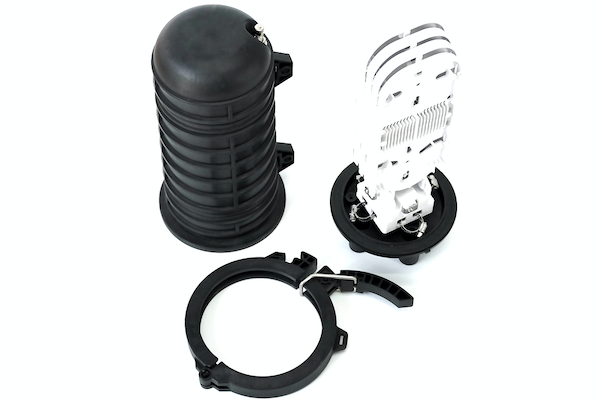

Fiber Dome Closure 144 core

144A Series

Technical Details

  • Protection Grade: IP68
  • Capacity: single: maximum 36F tray capacity and 4 splice trays; ribbon: maximum 192F, 4F/6F tray capacity

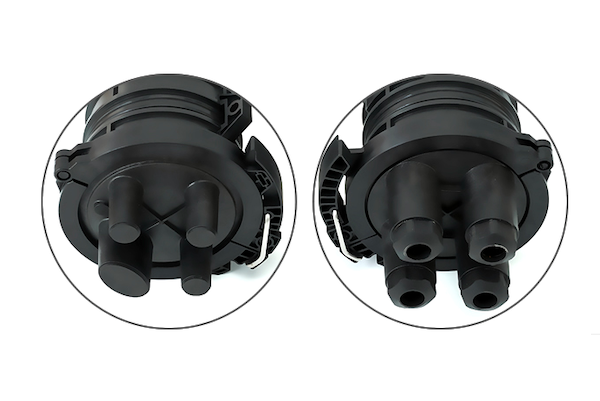

  • Ports: 4, applicable to φ8-16mm cables.
  • Sealing of housing : mechanical seal for housing,
  • Sealing of port: heat-shrink seal for ports or  mechanical seal for both housing and ports.
  • Installation: wall mounting, aerial
  • Performance: meet all the industry standard performance tests from YD/T 814.1-2013 Closure for Optical Fiber Cables (ICS 33.180.99)
  • Satisfactory space for the placement of fiber joints and fiber storage, preventing the joints from being influenced by the external environment
  • Dimension: 340×φ160 MM
  • Inner box : 350×180×160 MM
  • Outer Carton: 365×375×510 MM, 6pcs per outer carton

      Order Information

      Part Number

      Part Number Capacity QTY Cable Tray QTY Cable Entry Remark
      FDC-144A-4P4T-M 144 4 4
      FDC-144A-4P4T-S 144 4 4
      M: Mechanical Seal Housing And Mechanical Seal Port
      S: Mechanical Seal Housing And Hear Shrink Seal Port
      Dimension: 340×φ160 MM
      Inner Box: 350×180×160MM
      Outer Carton : 365×375×510 , 6pcs per carton
