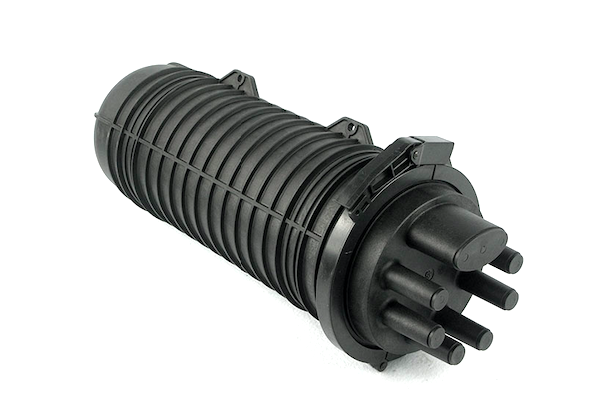

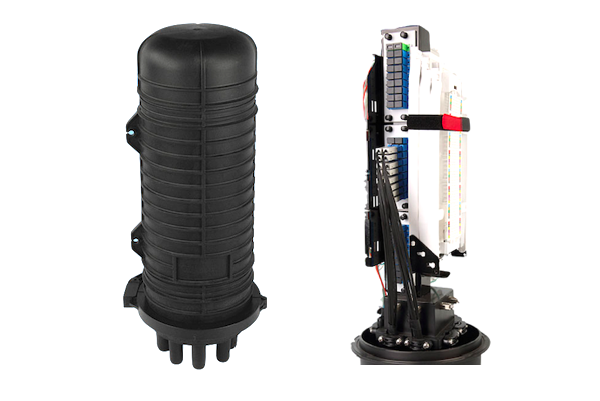

Fiber Dome Closure 144 core PLC

144AB Series

Technical Details

  • Protection Grade: IP68
  • Capacity: 48F, 96F, 144F

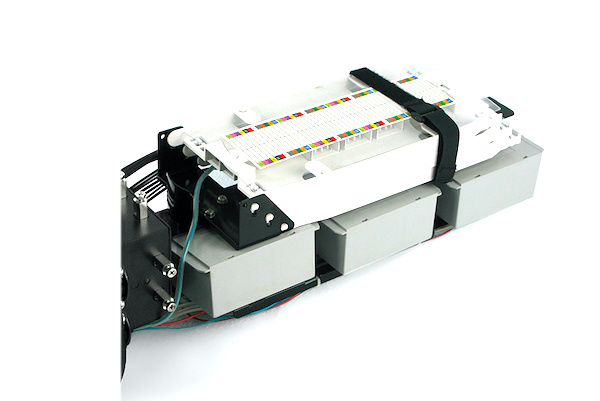

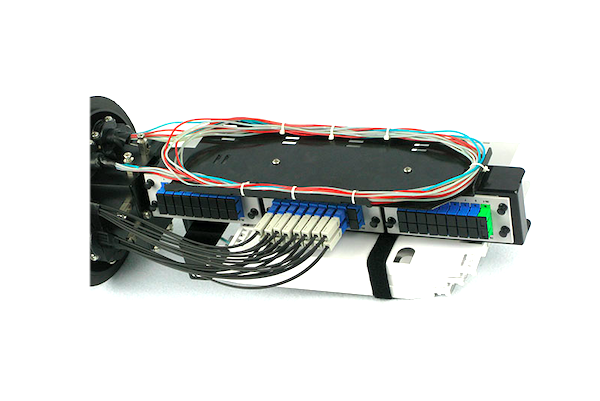

  • Three sets of 1:16SC or 1:32LC inserted splitter are applicable
  • Ports: Round hole can meet requirements of Ф8~17.5 cable output,Oval hole can meet requirements of Ф10~20 uncut input
  • Material: Modified polymer plastic
  • Sealing of housing : mechanical seal for housing,
  • Sealing of port: mechanical seal for ports
  • Installation: wall mounting, aerial, direct burial. etc.
  • Performance: meet all the industry standard performance tests from YD/T 814.1-2013 Closure for Optical Fiber Cables (ICS 33.180.99)
  • Satisfactory space for the placement of fiber joints and fiber storage, preventing the joints from being influenced by the external environment
  • Dimension: 600×ф260 MM
  • Outer Carton: 630×580×595 MM, 4pcs per outer carton

      Order Information

      Part Number

      Part Number Capacity QTY Cable Tray QTY Cable Entry Remark
      FDC-144B-7P3T-LC 144 3 7
      FDC-144B-7P3T-SC 144 3 7
      S: Mechanical Seal Housing And Hear Shrink Seal Port
      Dimension: 600×ф260 MM
      Outer Carton : 630×580×595 , 4pcs per carton
