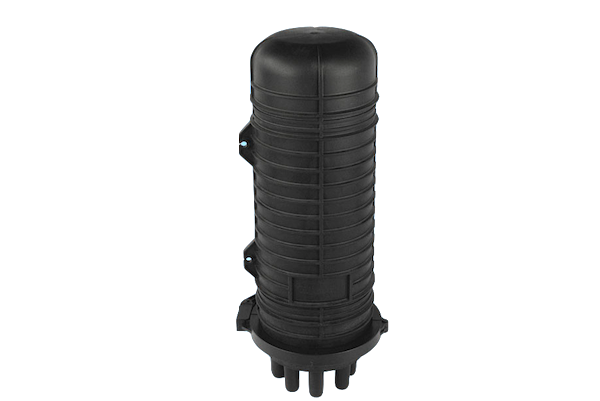

Fiber Dome Closure 144 core

144D Series

Technical Details

  • Protection Grade: IP68
  • Capacity: 144F, 6*24 core rays

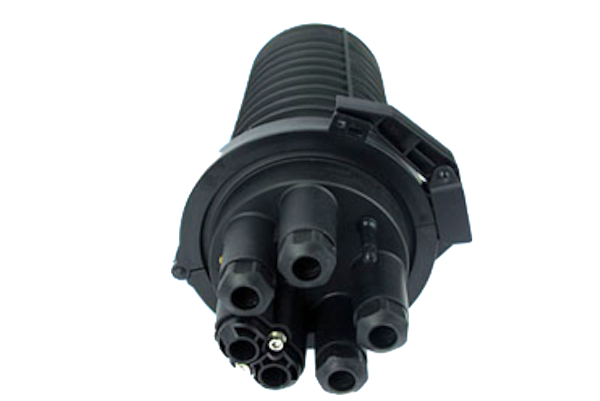

  • Ports: 5 port
  • Material: Modified polymer plastic
  • Sealing of housing : mechanical seal for housing,
  • Sealing of port: heat shrink seal for ports
  • Installation: wall mounting, aerial, direct burial. etc.
  • Performance: meet all the industry standard performance tests from YD/T 814.1-2013 Closure for Optical Fiber Cables (ICS 33.180.99)

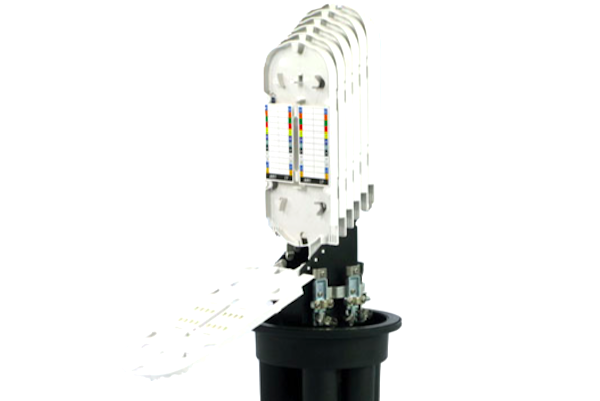

  • Satisfactory space for the placement of fiber joints and fiber storage, preventing the joints from being influenced by the external environment
  • Dimension: 435×ф230 MM
  • Outer Carton: 740×490×450 MM, 6pcs per outer carton

      Order Information

      Part Number

      Part Number Capacity QTY Cable Tray QTY Cable Entry Remark
      FDC-144D-5P6T-S 144 5 6
      FDC-144D-5P6T-S 144 5 6
      M: Mechanical Seal Housing And Mechanical Seal Port
      S: Mechanical Seal Housing And Hear Shrink Seal Port
      Dimension: 435×ф230 MM
      Outer Carton : 740×490×450MM , 6pcs per carton


      Not available now.

      Accessories List

      Not available now.
