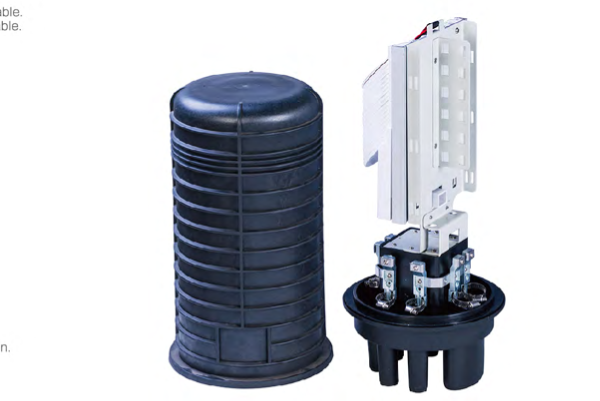

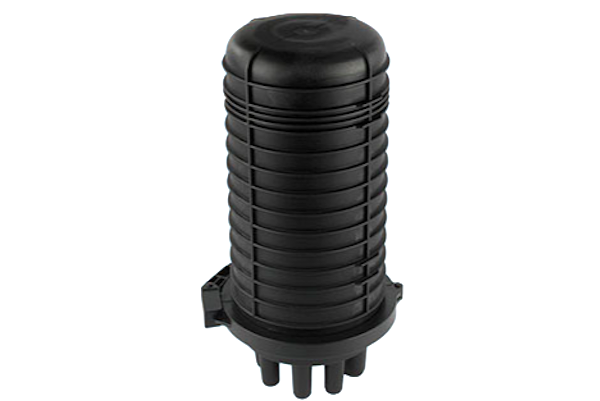

Fiber Dome Closure 240 core

240B Series

Technical Details

  • Protection Grade: IP68
  • Capacity: 240F, 10*24 core rays

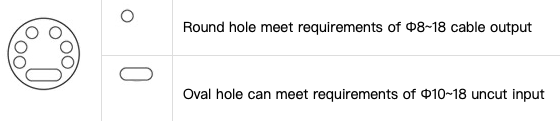

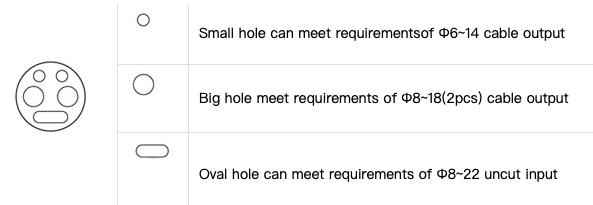

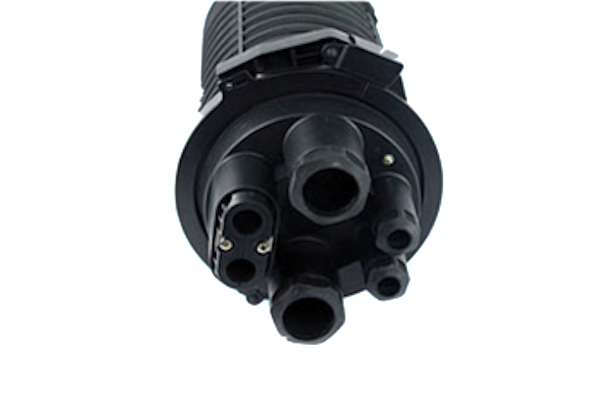

  • Ports: 7 port / 5 port  Φ8~20 cable
  • Material: Modified polymer plastic
  • Sealing of housing : mechanical seal for housing,
  • Sealing of port: heat shrink seal for ports
  • Installation: wall mounting, aerial, direct burial. etc.
  • Performance: meet all the industry standard performance tests from YD/T 814.1-2013 Closure for Optical Fiber Cables (ICS 33.180.99)

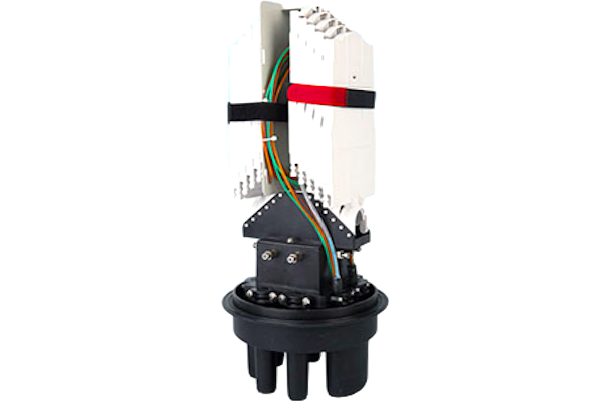

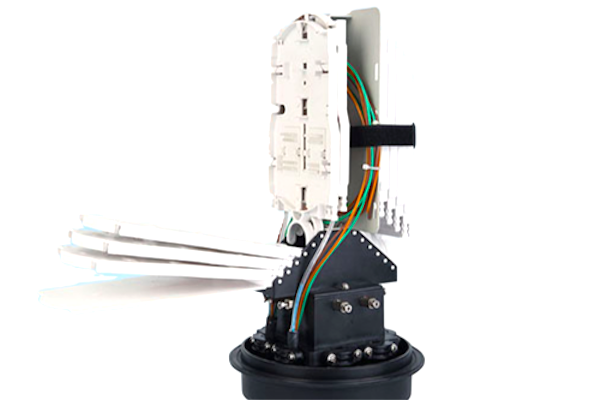

  • Satisfactory space for the placement of fiber joints and fiber storage, preventing the joints from being influenced by the external environment
  • Dimension: 480×ф260 MM
  • Outer Carton: 570×500×540 MM, 4pcs per outer carton

      Order Information

      Part Number

      Part Number Capacity QTY Cable Tray QTY Cable Entry Remark
      FDC-240B-5P10T-M 240 10 5
      FDC-240B-7P10T-S 240 10 7
      M: Mechanical Seal Housing And Mechanical Seal Port
      S: Mechanical Seal Housing And Hear Shrink Seal Port
      Dimension: 480×ф260 MM
      Outer Carton : 570×500×540MM , 4pcs per carton
