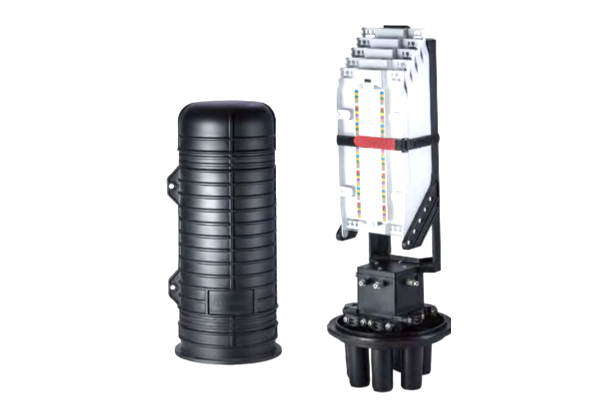

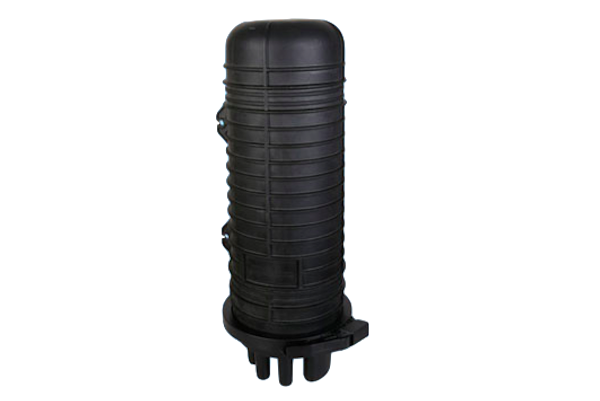

Fiber Dome Closure 288 core

288A Series

Technical Details

  • Protection Grade: IP68
  • Capacity: 288F, 6*48 core rays

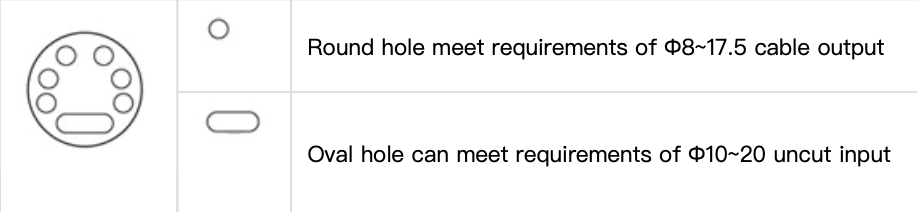

  • Ports: 7 Φ14~25 cable
  • Material: Modified polymer plastic
  • Sealing of housing : mechanical seal for housing,
  • Sealing of port: heat shrink seal for ports
  • Installation: wall mounting, aerial, direct burial. etc.
  • Performance: meet all the industry standard performance tests from YD/T 814.1-2013 Closure for Optical Fiber Cables (ICS 33.180.99)

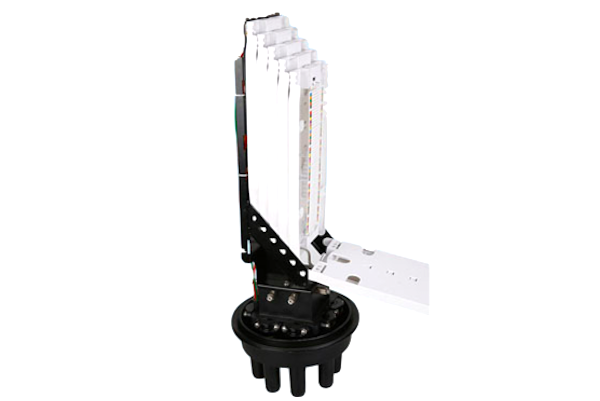

  • Satisfactory space for the placement of fiber joints and fiber storage, preventing the joints from being influenced by the external environment
  • Dimension: 585×ф260 MM
  • Outer Carton: 630×580×595 MM, 4pcs per outer carton

      Order Information

      Part Number

      Part Number Capacity QTY Cable Tray QTY Cable Entry Remark
      FDC-288A-7P6T-S 288 7 6
      S: Mechanical Seal Housing And Hear Shrink Seal Port
      Dimension: 585×ф260 MM
      Outer Carton : 630×580×595MM , 4pcs per carton


      Not available now.

      Accessories List

      Not available now.
