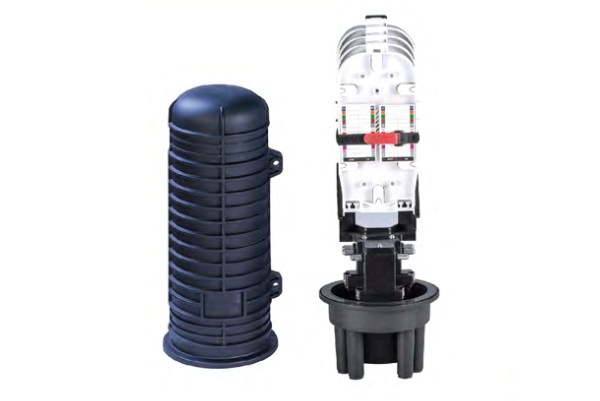

Fiber Dome Closure 96 core

96A Series

Technical Details

  • Protection Grade: IP68
  • Capacity: 96F

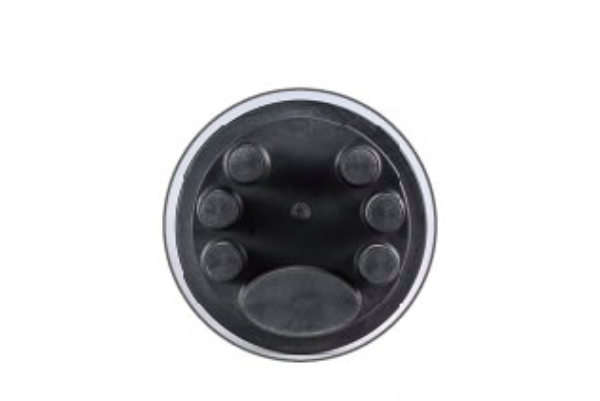

  • Ports:6 branch ports for Ф8~15mm ceble,1 port for Ф10~15mm uncut cable.
  • Material: Modified polymer plastic
  • Sealing of housing : mechanical seal for housing,
  • Sealing of port: heat shrink seal for ports
  • Installation: wall mounting, aerial, direct burial. etc.
  • Performance: meet all the industry standard performance tests from YD/T 814.1-2013 Closure for Optical Fiber Cables (ICS 33.180.99)

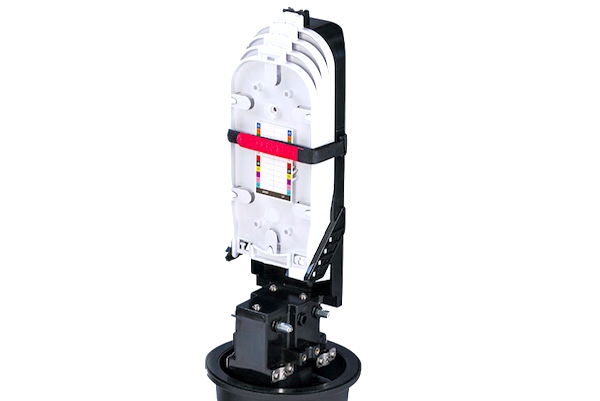

  • Satisfactory space for the placement of fiber joints and fiber storage, preventing the joints from being influenced by the external environment
  • Dimension: 520×Ф225 MM
  • Inner box : 540×245×210mm
  • Outer Carton: 555×510×675 MM, 4pcs per outer carton

      Order Information

      Part Number

      Part Number Capacity QTY Cable Tray QTY Cable Entry Remark
      FDC-96A-7P4T-S 96 4*24F 6+1
      S: Mechanical Seal Housing And Hear Shrink Seal Port
      Dimension: 520×Ф225 MM
      Inner Box: 540×245×210 MM
      Outer Carton : 555×510×675 MM , 6pcs per carton


      Not available now.

      Accessories List

      Not available now.
