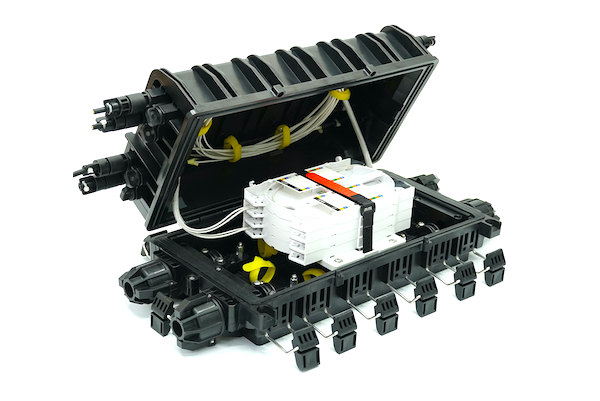

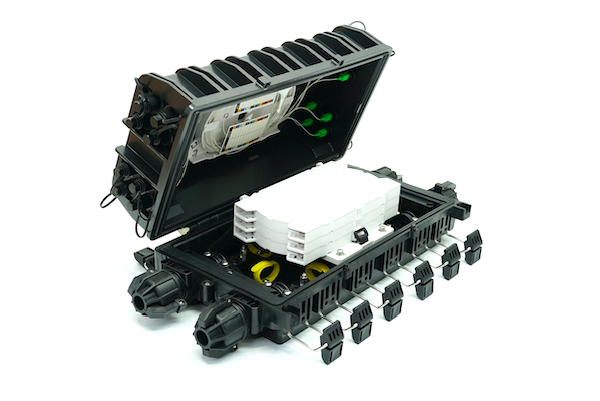

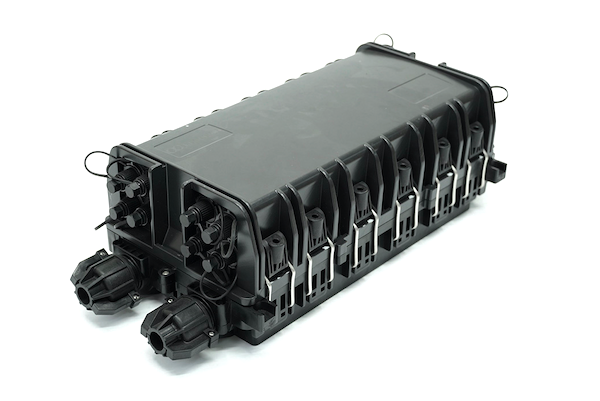

Fiber Horizontal Closure 144 core

FHC-144A Series

Technical Details

  • Protection Grade: IP68
  • Capacity: 24F/48F tray capacity, 3 splice trays

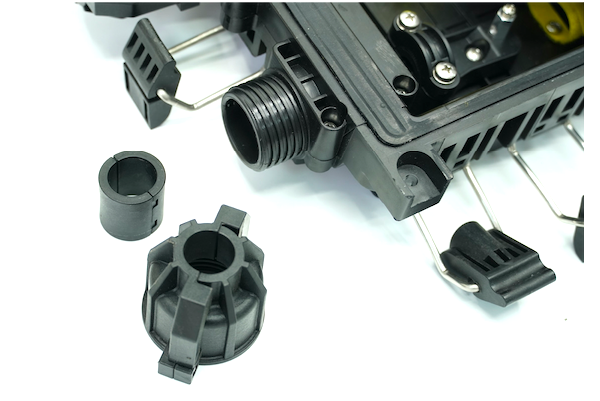

  • Ports: 2 inlets and 2 outlets, applicable to φ9-11 mm cables, and 16 pcs φ4-6 mm drop cables or bow-type cables.
  • Sealing: screw structure, silica gel for squeezing seal
  • Installation: wall mounting, aerial, duct mounting, underground
  • Performance: meet all the industry standard performance tests from YD/T 814.1-2013 Closure for Optical Fiber Cables (ICS 33.180.99) and strict tests like IK10 and TCT (*10)
  • Dimension: 510×230×150 MM
  • Inner box : 625×245×175 MM
  • Outer Carton: 645×520×380  MM, 6pcs per outer carton

      Order Information

      Part Number

      Part Number Capacity QTY Cable Tray QTY Cable Entry Remark
      FHC-144A-2I2O3T 144 3*48 core 2 in 2 out


      Not available now.

      Accessories List

      Not available now.
