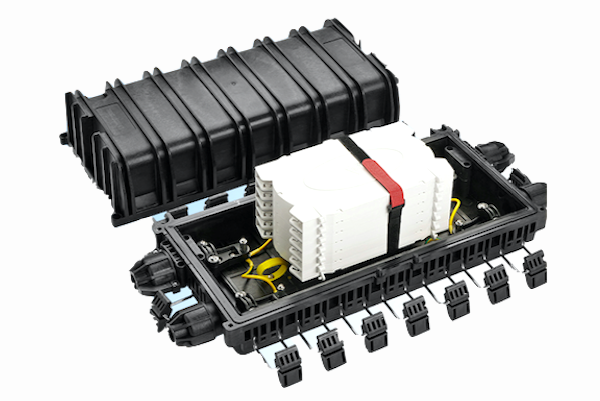

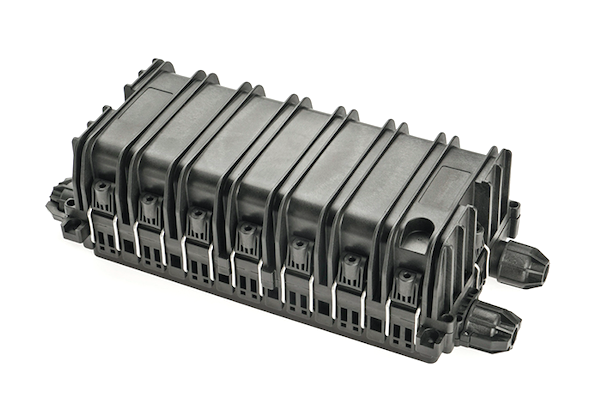

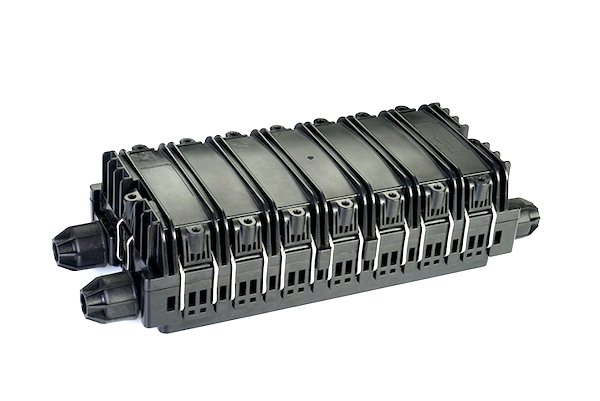

Fiber Horizontal Closure 144 core

FHC-144B Series

Technical Details

  • Protection Grade: IP68
  • Capacity: 144F, 6*24core
  • Ports: 2 in 2 out , and suitable for Φ 10 to 18 mm cable
  • Sealing: screw structure, silica gel for squeezing seal
  • Installation: wall mounting, aerial, duct mounting, underground
  • Performance: meet all the industry standard performance tests from YD/T 814.1-2013 Closure for Optical Fiber Cables (ICS 33.180.99) and strict tests like IK10 and TCT (*10)
  • Dimension: 490×200×120 MM
  • Inner box : 510×220×150 MM
  • Outer Carton: 530×460×480 MM, 6pcs per outer carton

      Order Information

      Part Number

      Part Number Capacity QTY Cable Tray QTY Cable Entry Remark
      FHC-144B-2I2O6T 144 6*24 core 2 in 2 out
