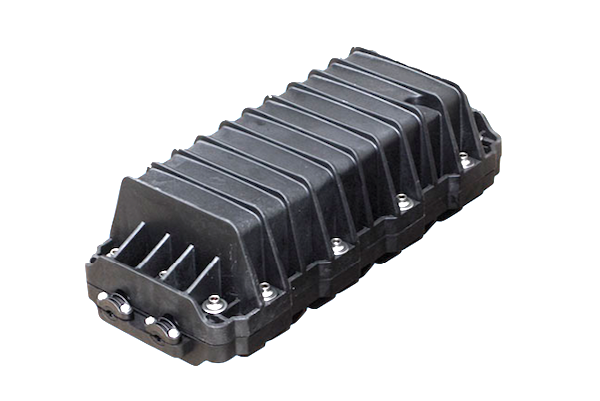

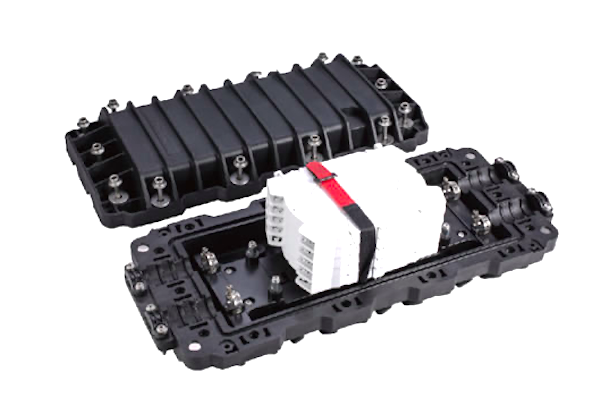

Fiber Horizontal Closure 144 core

FHC-144C Series

Technical Details

  • Protection Grade: IP68
  • Capacity: 144F, 6*24core
  • Ports: 2 in 2 out, suitable for Φ 10-20 mm cable.
  • Sealing: screw structure, silica gel for squeezing seal
  • Installation: wall mounting, aerial, duct mounting, underground
  • Performance: meet all the industry standard performance tests from YD/T 814.1-2013 Closure for Optical Fiber Cables (ICS 33.180.99) and strict tests like IK10 and TCT (*10)
  • Dimension: 474×201×150 MM
  • Inner box : 540×220×165 MM
  • Outer Carton: 560×465×550 MM, 6pcs per outer carton

      Order Information

      Part Number

      Part Number Capacity QTY Cable Tray QTY Cable Entry Remark
      FHC-144C-2I2O6T 144 6*24core 2 in 2 out


      Not available now.

      Accessories List

      Not available now.
