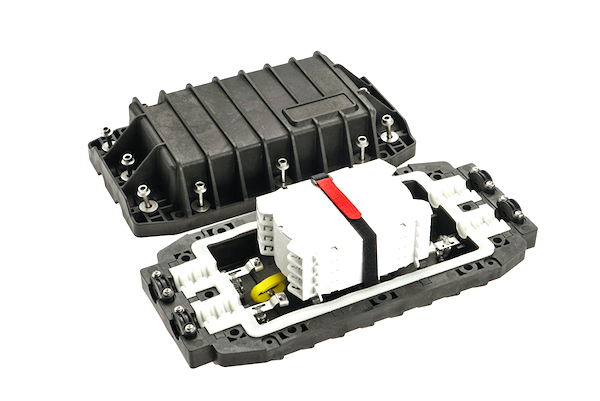

Fiber Horizontal Closure 96 core

FHC-96A Series

Technical Details

  • Protection Grade: IP68
  • Capacity: 96F, 4*24core
  • Ports: 2 in 2 out, suitable for Φ 10-20 mm cable.
  • Sealing: screw structure, silica gel for squeezing seal
  • Installation: wall mounting, aerial, duct mounting, underground
  • Performance: meet all the industry standard performance tests from YD/T 814.1-2013 Closure for Optical Fiber Cables (ICS 33.180.99) and strict tests like IK10 and TCT (*10)
  • Dimension: 420×201×128 MM
  • Inner box : 440×220×150 MM
  • Outer Carton: 460×460×480 MM, 6pcs per outer carton

      Order Information

      Part Number

      Part Number Capacity QTY Cable Tray QTY Cable Entry Remark
      FHC-96A-2I2O4T 96 4*24core 2 in 2 out


      Not available now.

      Accessories List

      Not available now.
