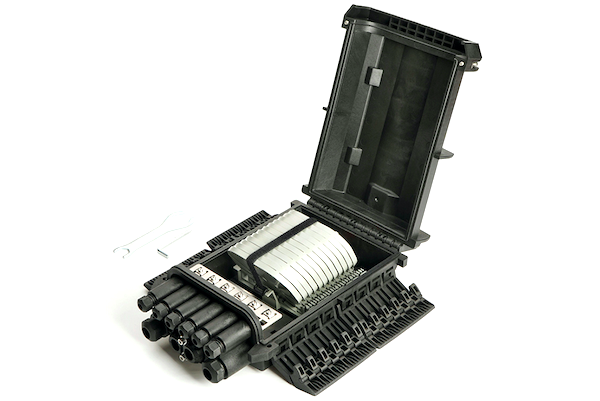

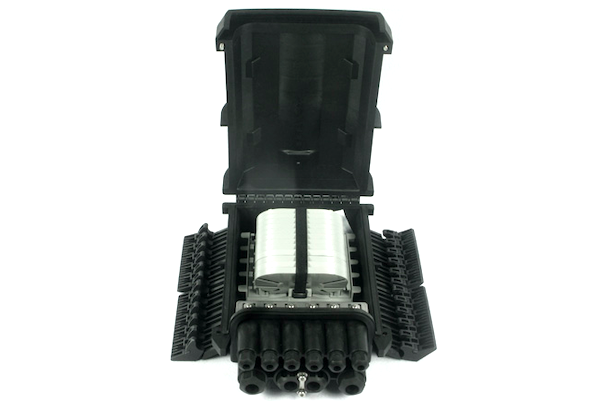

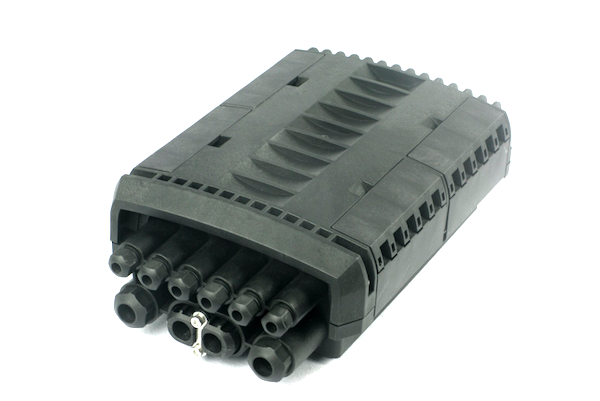

Fiber Distribution Box 144B Core

FDB-144B Series

Technical Details

  • IP68

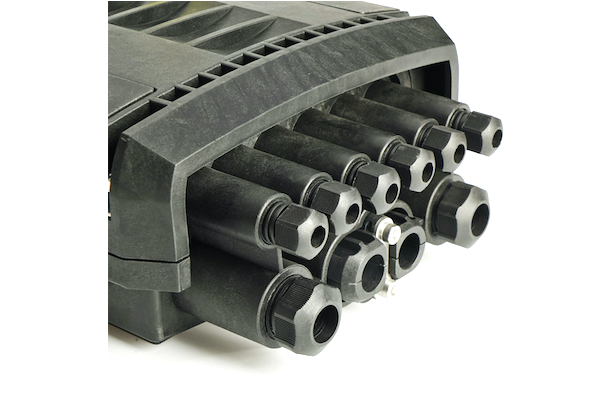

  • 1 Port for uncut cable Ф10~l 7.5mm. 2 branch ports for Ф6～8mm，Ф10～17.5mm cable. 6 ports for outlet cables(Ф6-8 round cable).

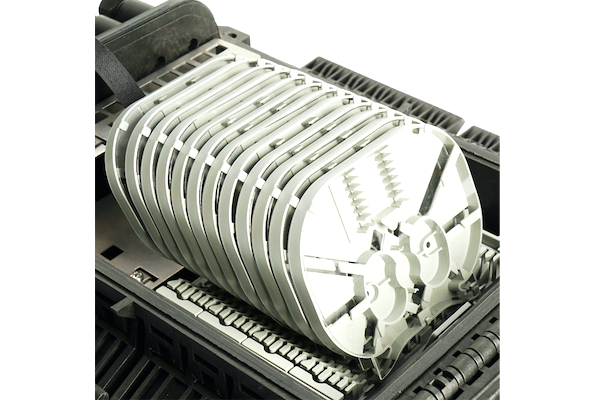

  • Capacity: 144 core, 12*12 core tray
  • Inner box : 395×255×165 MM
  • Outer carton: 540×410×350 MM, 4 pcs

      Order Information

      Part Number

      Part Number Capacity QTY Cable Tray QTY Cable Entry Remark
      FDB-144B-4I6O12T 144 12*12 core 4 in 6 out

      Package

      Download

      Not available now.

      Accessories List

      Not available now.
