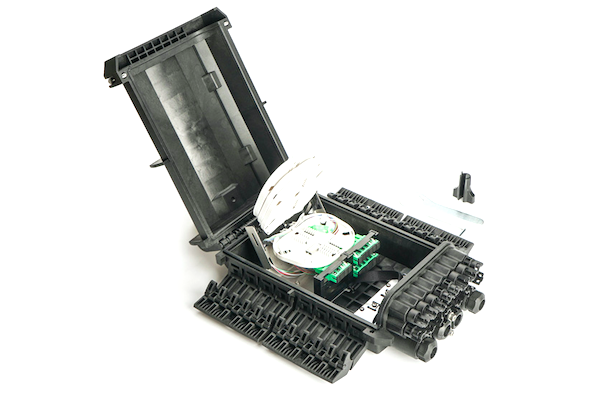

Fiber Distribution Box 96 Core

FDB-96B Series

Technical Details

  • IP68

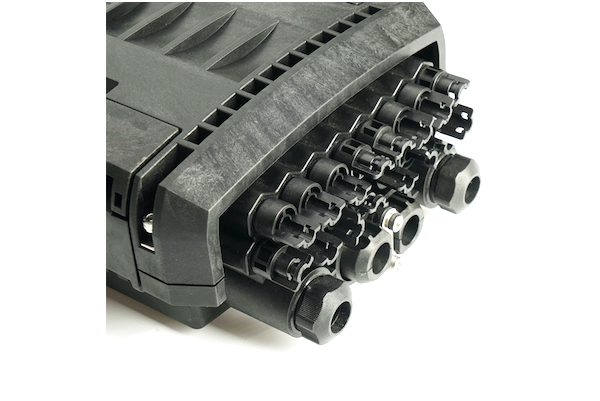

  • 1 port for uncut cable Ф10~ 17.5mm. 2 branch ports for Ф10-7.5mm cable
  • 16 cable outlet (applicable for 2x3mm soft cable or Ф3-8mm round cable)

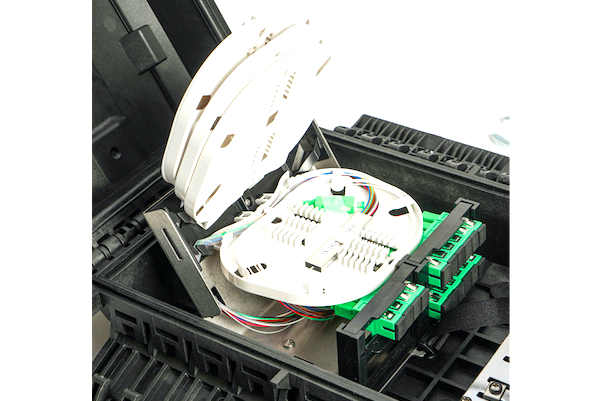

  • Capacity: 96 core, 4*24 core tray
  • Could be installed with micro type splitters and 24 pcs of SC adapters
  • Inner box : 395×255×165 MM
  • Outer carton: 540×410×350 MM, 4 pcs

      Order Information

      Part Number

      Part Number Capacity QTY Cable Tray QTY Cable Entry Remark
      FDB-96B-4I16O4T-24SC 96 4*24core 4 in 16 out
